250gal Mini Fire Truck

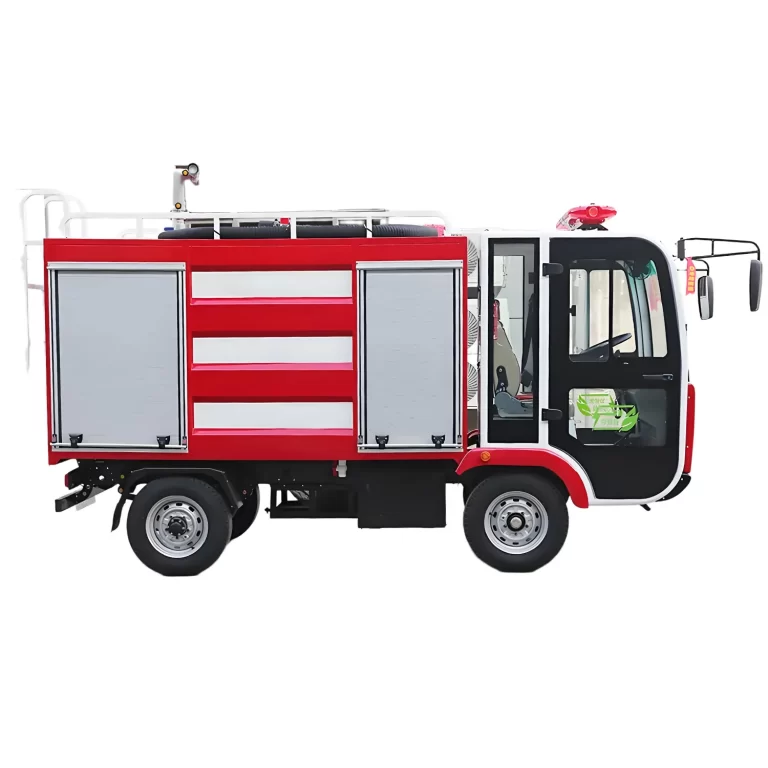

The 250 Gal Mini Fire Truck is a compact electric firefighting vehicle built around a listed 1000 L (approximately 264 US gal) water tank, a 72 V electric drivetrain, and a water-delivery system with listed water-delivery data of 600 L/min flow and 0.55 MPa pressure.
With overall dimensions of 4050 × 1480 × 2100 mm, a 5000 mm turning radius, and 190 mm ground clearance, this model is intended for sites where access space and vehicle size are important operating constraints.
This page covers the 250-gallon configuration. For other compact capacities and vehicle configurations, see the Mini Fire Truck range. Final configuration, required documentation, and market-specific compliance requirements should be confirmed for the exact project before order approval.
Detail
The 250-gallon model combines an electric drivetrain, onboard water storage, pump, and configurable discharge equipment in a compact vehicle platform.
Electric Drivetrain
The vehicle uses a 72 V electric drivetrain. Specify motor duty, battery chemistry and capacity, charger requirements, and the loaded operating cycle as part of the vehicle package. Driving and pumping demands should be included when selecting the electrical configuration.

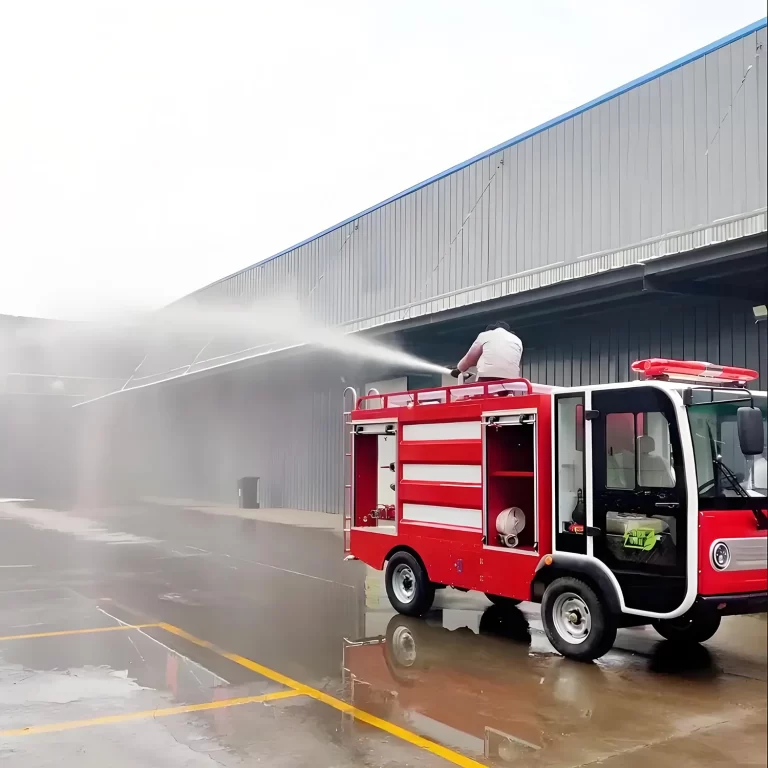

Water Delivery
The vehicle carries a listed 1000 L (approximately 264 US gal) water tank. The current model data lists 600 L/min flow and 0.55 MPa pressure; specify the required flow-pressure duty point for the ordered pump. Actual discharge characteristics also depend on the selected nozzle arrangement and operating configuration.
Vehicle Size and Access
Overall dimensions are 4050 × 1480 × 2100 mm. The listed turning radius is 5000 mm and ground clearance is 190 mm. These dimensions should be checked against gates, internal roads, aisle width, turning space, and other site-access constraints before selection.
Configuration
Available vehicle configuration can include the water-delivery arrangement, nozzle setup, equipment layout, and other project-specific items. Required changes should be confirmed before quotation rather than assumed to apply to every 250-gallon vehicle.

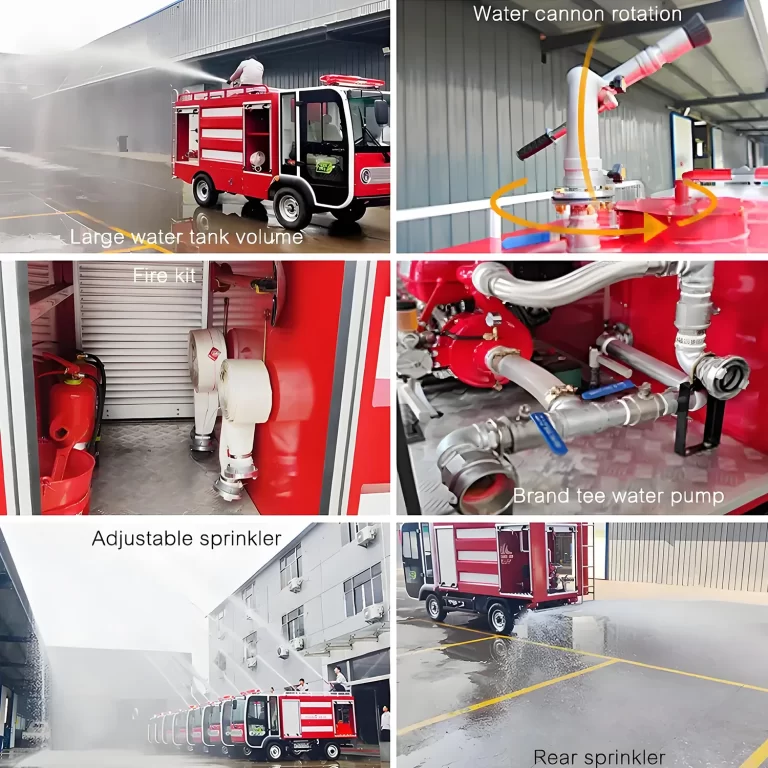

1000 L (Approximately 264 US gal) Water Tank
Model-specific onboard water capacity for compact firefighting and site-response applications.72 V Electric Drive
72 V electric drivetrain, with motor, battery, and charging specifications selected for the required operating cycle.600 L/min Water-Delivery Rating
Current model data lists 600 L/min flow and 0.55 MPa pressure; pump selection uses the required duty point.Compact Vehicle Dimensions
Overall dimensions of 4050 × 1480 × 2100 mm with a listed 5000 mm turning radius.Configurable Equipment Layout
Nozzle arrangement, water-delivery equipment, and other project-specific vehicle configuration can be reviewed before quotation.
Applications
The 250-gallon configuration is intended for applications where a compact vehicle and limited onboard water supply fit the site response plan.
- Restricted-Access Sites: Internal roads, campuses, industrial facilities, and other locations where a larger apparatus may have limited maneuvering space.
- Localized Fire Response: First-response or supplementary water delivery where the 1000 L tank and configured pump capacity are appropriate for the identified hazard.
- Industrial and Facility Support: On-site response applications where the vehicle dimensions, water capacity, and equipment layout match the facility fire-protection plan.
- Cleaning and Water-Delivery Tasks: Non-fire applications where the configured spray or nozzle system is suitable for the required water-delivery task.
Selection should be based on the site hazard, required water supply, access conditions, pump and nozzle requirements, staffing, and the role assigned to the vehicle within the overall emergency-response plan.
| Parameter | Metric | Imperial | Notes |
| Water Tank Capacity | 1000 L | ≈ 264 US gal | Polymer or stainless steel |
| Dimensions | 4050 × 1480 × 2100 mm | 159.4 × 58.3 × 82.7 in | — |
| Estimated Curb Weight | 2600–3200 kg | 5732–7055 lbs | Listed estimate; configuration dependent |
| Motor Power | 72 V electric drivetrain; motor rating specified for the order | — | Select for the required loaded duty |
| Battery System | 72 V system; battery and charger package specified for the order | — | Specify chemistry, capacity, and charging requirements |
| Max Speed | 28–35 km/h | 17–22 mph | Depends on load & terrain |
| Range (Unloaded, Road Use) | 40–55 km | 25–34 miles | Conditions dependent |
| Pump Flow | 550–650 L/min | 145–172 gpm | Electric centrifugal pump |
| Pump Pressure | 0.55 MPa | ~80 psi | For initial fire response |
| Turning Radius | 5000 mm | 16.4 ft | — |
| Ground Clearance | 190 mm | 7.5 in | — |
| Charging Time | 8–10 hours (AC) | — | SAE J1772 optional |
| Drive System | Electric rear drive | — | — |
Certification and Project Documentation
Required standards, approvals, inspection documents, and vehicle documentation depend on the exact vehicle configuration, destination market, and purchaser or authority requirements.
Any certification or compliance claim must be verified against documentation for the exact 250-gallon vehicle being supplied. A reference to a standard should not be treated as confirmation that every configuration of this vehicle is certified or listed to that standard.
Information Needed for a 250-Gallon Mini Fire Truck Quote
For quotation and configuration review, provide:
- Intended operating environment
- Required water and firefighting function
- Site access or vehicle-size constraints
- Required pump and nozzle configuration
- Quantity
- Destination country or market
- Required standards, approvals, or project documentation
- Additional onboard equipment requirements
- Charging or electrical requirements relevant to the site
These inputs allow the 250-gallon model to be reviewed as a specific vehicle configuration rather than as a generic mini fire truck.
