Aerial Ladder Truck
NFPA 1901 | UL 2128 | FM Approved | 40m Ladder Reach | 8,000L Tank | PL8/24 Remote Monitor

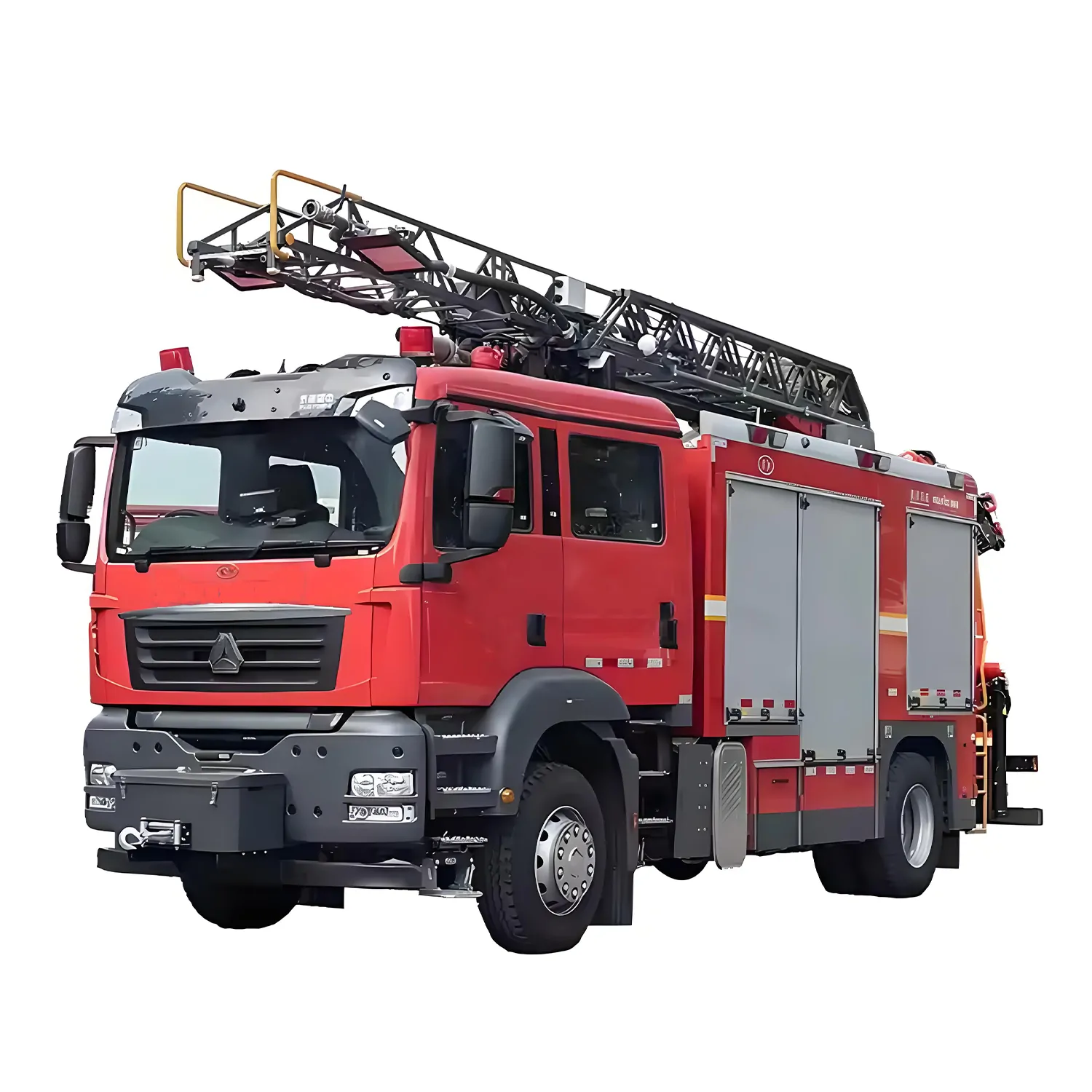

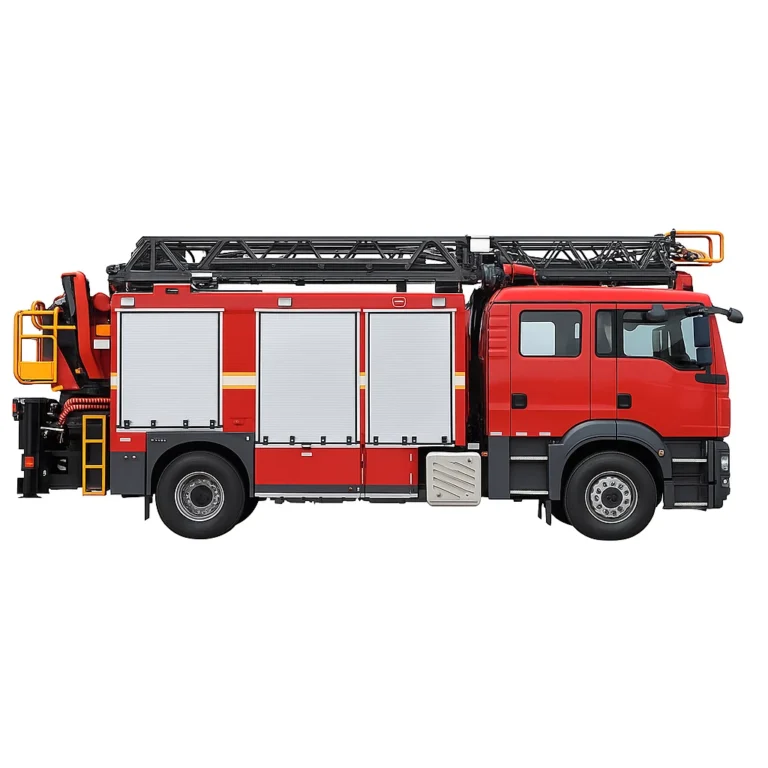

The Aerial Ladder Truck is a fully integrated firefighting vehicle designed for high-rise fire suppression, industrial fire zones, and elevated rescue operations. Featuring a 40-meter (131.2 ft) hydraulic ladder, an 8,000-liter (8 m³) water and foam tank, and a PL8/24 remote-controlled monitor with a 60-meter (196.8 ft) discharge range, this apparatus delivers vertical reach, fire suppression power, and rapid deployment capability in a single platform.
Built on a Sinotruck 4×2 chassis and powered by a 257 kW diesel engine, the fire vehicles meets critical performance and safety standards including NFPA 1901, UL 2128, and FM Approved certification. Its compact footprint and ergonomic design make it a reliable asset for municipal fire departments, industrial emergency units, and regional response teams.
The Aerial Ladder Truck integrates high-volume suppression, vertical access, and crew safety in one mobile unit. Its 8,000-liter water/foam tank ensures extended mission endurance, especially critical in petrochemical, refinery, or storage terminal scenarios. The PL8/24 remote-controlled monitor, operating at 1 MPa working pressure, provides adjustable spray patterns for Class A and Class B fire suppression, including flammable liquid fires.

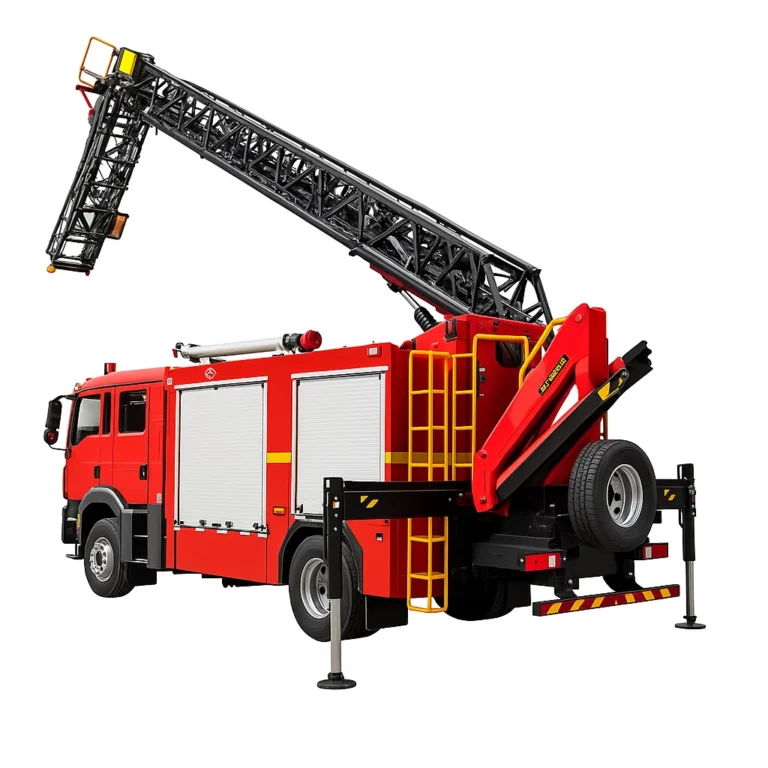

The hydraulic telescoping aerial ladder extends to 40 meters, enabling safe access to upper floors, roofs, or confined vertical spaces. Its multi-section, reinforced boom system maintains stability during operation in adverse weather, with anti-sway and locking mechanisms designed for wind loads up to Beaufort Scale 6.
The vehicle’s 257 kW diesel powertrain and 7,360 ml engine displacement deliver consistent torque and throttle response. The Sinotruck 4×2 chassis, coupled with 315/80R22.5 high-load tires and a 4,500 mm wheelbase, ensures responsive handling and optimal stability during mobile operation or ladder deployment.
The crew cab is ergonomically optimized for two firefighters, featuring shock-absorbing seats, integrated digital control panels, and hands-free communication systems, enhancing long-shift usability. The truck body is built from corrosion-resistant, high-strength steel with anti-oxidation coatings, designed for prolonged service in high-humidity, coastal, or industrial environments.
Overall dimensions of 9,325 × 2,500 × 3,980 mm (367.2 × 98.4 × 156.7 inches) allow for excellent maneuverability in narrow city streets and restricted-access fire zones.
High-Volume Fire Suppression：8,000-liter water and foam tank reduces refill frequency during extended deployments.
PL8/24 Remote-Controlled Monitor：Offers 60m effective range, spray pattern adjustability, and precision targeting for rooftop and vertical fires.
40m Hydraulic Ladder：Telescopic multi-section aerial ladder with wind-resistance and positional stability for safe elevated operations.
Powerful Diesel Powertrain：257 kW engine with high-displacement torque ensures operational readiness under full load conditions.
Urban Maneuverability：Compact vehicle length and optimized wheelbase support tight turns and alley access in high-density zones.
Operator-Centric Cabin：Two-seat configuration with ergonomic controls, panoramic field vision, and integrated voice command interface.
Heavy-Duty Build Quality：Built from corrosion-resistant high-strength steel for use in chemical, coastal, and abrasive urban environments.
Regulatory Compliance：Fully certified to NFPA 1901 (fire apparatus), UL 2128 (monitor/pump), and FM Approvals for insurability.
- Urban & High-Rise Firefighting：Provides elevated suppression for residential towers, commercial buildings, and critical infrastructure in dense city layouts.
- Industrial Fire Zones：Deployed in petrochemical plants, logistics parks, and manufacturing facilities with elevated ignition points or liquid fire hazards.
- Technical Rescue Operations：Used for confined-space access, vertical rescue, and elevated victim extraction through the aerial ladder.
- Municipal & Governmental Fire Services：Supports city and regional fire departments, with rapid deployment capabilities for highway, airport, and port incidents.
| Parameter | Specification |
| Water & Foam Tank | 8,000L (8 m³), anti-corrosive lined steel |
| Aerial Ladder Height | 40 meters (131.2 feet), hydraulic telescopic boom |
| Fire Monitor Model | PL8/24, electric remote-controlled |
| Fire Monitor Range | 60 meters (196.8 feet) @ 1 MPa working pressure |
| Dimensions (L×W×H) | 9,325 × 2,500 × 3,980 mm (367.2 × 98.4 × 156.7 inches) |
| Curb Weight | 9,850 kg (21,720 lbs) |
| Gross Vehicle Weight | 18,000 kg (39,683 lbs) |
| Rated Load Capacity | 8,000 kg (17,637 lbs) |
| Engine Power | 257 kW |
| Engine Displacement | 7,360 ml |
| Chassis | Sinotruck 4×2 |
| Brake System | Full-air brake system |
| Wheelbase | 4,500 mm (177.2 inches) |
| Tire Size | 315/80R22.5 |
| Crew Capacity | 2 firefighters/operators |
| Certifications | NFPA 1901, UL 2128, FM Approved |
| Standard | Description |
| NFPA 1901 | U.S. standard for automotive fire apparatus: safety, design, and equipment layout |
| UL 2128 | UL standard for water/foam fire monitors and delivery components |
| FM Approved | Factory Mutual certification for high-risk, insurance-eligible firefighting systems |
