Double Fire Extinguisher Wall Rack
The Double Fire Extinguisher Wall Rack is designed to hold two portable fire extinguishers in one fixed wall-mounted position. It is suitable for common 2–5 kg extinguishers, approximately 5–11 lb, depending on cylinder diameter and body shape.
The steel frame uses upper and lower ring supports to keep both extinguishers organized, visible, and easy to access. It is suitable for commercial buildings, warehouses, workshops, schools, fire equipment rooms, and bulk distributor supply.
Detailed Product Description
This double fire extinguisher wall rack provides a compact solution for storing two extinguishers side by side. Compared with separate single brackets, the dual-position structure helps standardize extinguisher placement and saves wall space in facilities where multiple extinguishers are installed together.
The rack uses an upper and lower ring support design. The upper ring helps guide and stabilize the cylinder body, while the lower ring supports the base area and reduces side movement. This structure is more suitable for paired extinguisher placement than a single hook-style bracket.
It is designed for common 2 kg, 3 kg, 4 kg, and 5 kg portable extinguishers, approximately 5 lb, 6.5 lb, 9 lb, and 11 lb. Final fit should be confirmed by cylinder diameter, extinguisher height, base shape, and handle profile before bulk ordering.
The frame is made from painted steel or metal construction, with customer-specified color options available. Standard red finish is commonly used for fire equipment visibility, while custom colors can be supplied for OEM, distributor, or project requirements.
For wall installation, the rack should be mounted on a suitable surface using appropriate screws, anchors, or fasteners selected by the installer. Placement should keep extinguishers visible and accessible according to local code and site requirements.
This product is supplied as a non-pressurized fire extinguisher mounting accessory. No third-party certification is implied unless documented for a specific tested configuration.
Technical Specifications
| Parameter | Specification |
| Product Name | Double Fire Extinguisher Wall Rack |
| Product Type | Wall-mounted double fire extinguisher rack |
| Compatible Capacity | 2–5 kg / approx. 5–11 lb portable extinguishers |
| Common Models | 2 kg, 3 kg, 4 kg, 5 kg extinguishers, depending on cylinder design |
| Material | Steel / metal construction |
| Finish | Painted finish; red or customer-specified colors |
| Structure | Double-position rack with upper and lower ring supports |
| Installation Type | Screw-mounted / bolt-on wall installation |
| Mounting Surface | Concrete wall, column, metal panel, wood surface, fire equipment room wall |
| Reference Dimensions | 2 kg version: approx. 27 cm high, 16 cm wide, 13 cm ring width; 3/4 kg version: approx. 27.6 cm high, 19.3 cm wide, 14.5 cm ring width |
| Fit Confirmation | Cylinder diameter, extinguisher height, base shape, and handle profile should be checked before order |
| Customization | Size, color, finish, label, carton mark, packaging |
| Certification Statement | Non-pressurized mounting accessory; no third-party certification implied unless documented for a specific tested configuration |
Product Features
- Dual Storage: Holds two portable extinguishers in one wall-mounted rack.
- 2–5 kg Fit Range: Suitable for common 2 kg, 3 kg, 4 kg, and 5 kg extinguishers.
- Ring Support Design: Upper and lower rings help position the cylinder body and base.
- Steel Construction: Painted steel frame supports routine commercial and facility use.
- Custom Colors: Red finish and customer-specified colors are available for OEM orders.
- Bulk Supply: Suitable for distributors, installers, contractors, and project-based procurement.
Applications
Commercial Buildings: Suitable for offices, hotels, schools, shopping centers, and public facilities where paired extinguisher placement is required.
Warehouses and Workshops: Used near storage areas, production zones, maintenance rooms, equipment areas, and facility corridors.
Fire Equipment Rooms: Helps organize multiple extinguishers in sprinkler rooms, electrical rooms, mechanical rooms, and emergency equipment areas.
Residential Common Areas: Suitable for apartment corridors, parking areas, utility rooms, and shared safety points.
Distributor Supply: Suitable for fire extinguisher suppliers, safety equipment distributors, installers, and bulk project buyers.

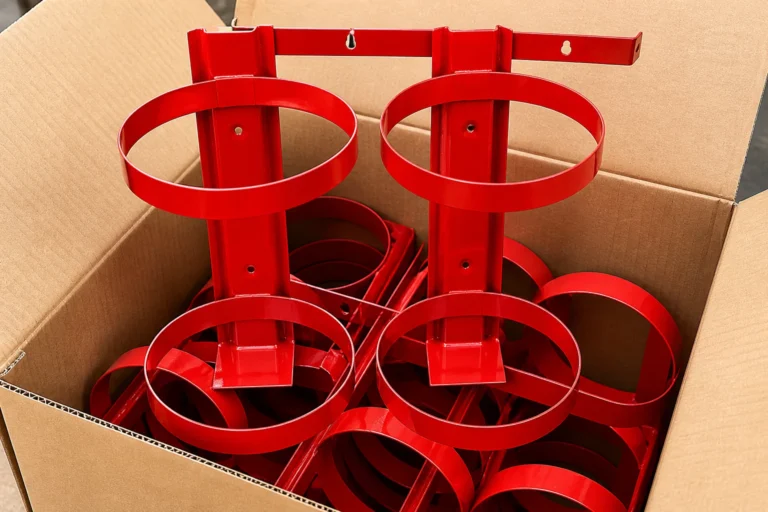

Bulk Double Wall Racks
Poseidon supplies double fire extinguisher wall racks for distributors, contractors, facility safety suppliers, and OEM customers. Send us your extinguisher size, cylinder diameter, preferred color, finish requirement, packaging needs, and order quantity.
We support custom rack size, color, label, carton mark, and OEM packaging for fire extinguisher accessory supply programs.
