Fire Extinguisher Brackets

Fire extinguisher bracket selection should start with the extinguisher body, not the bracket shape. The bracket must match the extinguisher size, cylinder diameter, cylinder weight, neck profile, valve guard shape, mounting surface, vibration level, and access requirement.

For static indoor placement, wall hooks, loop brackets, flat wall brackets, and wall strap brackets are commonly used in offices, apartments, warehouses, schools, and maintenance areas. For mobile or vibration-prone environments, single-strap, double-strap, support-base, and heavy-duty vehicle brackets provide stronger cylinder retention during movement, impact, braking, or equipment vibration.

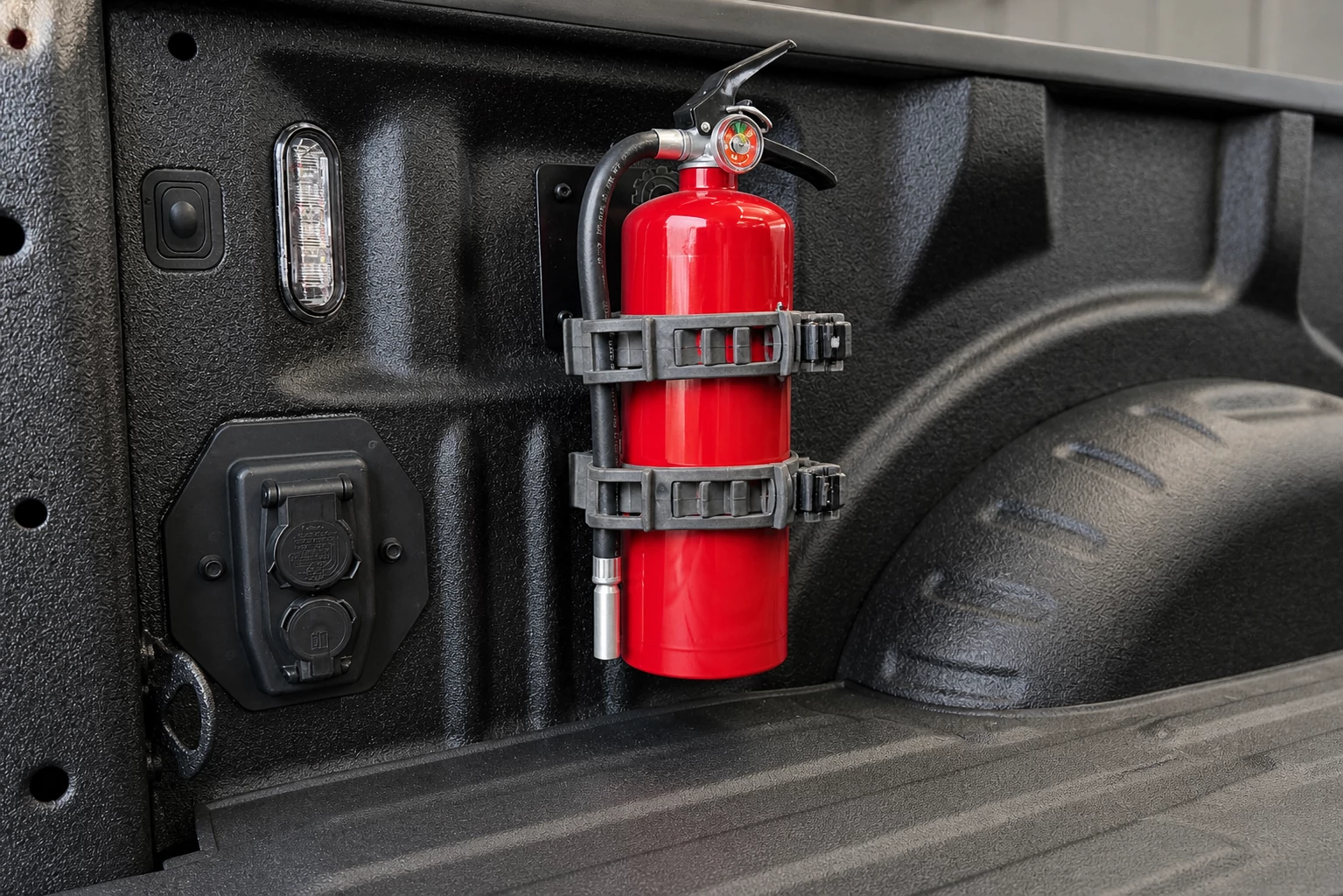

For vehicle and marine applications, the bracket must hold the extinguisher securely during vibration while still allowing quick and positive release during an emergency. This is why strap design, latch strength, release direction, and mounting hole layout should be reviewed before production.

OSHA installation guidance also makes bracket selection more than a hardware decision. Portable fire extinguishers should be mounted on brackets or in wall cabinets to reduce movement or damage. Typical placement guidance includes:

• Up to 40 lb gross weight: carrying handle no higher than 5 ft (1.52 m) above the floor.
• Over 40 lb gross weight: carrying handle no higher than 3.5 ft (1.07 m) above the floor.
• All hand-portable extinguishers: bottom clearance of at least 4 in (102 mm) above the floor.

For larger extinguishers, bottom support becomes more important. Brackets for 20 lb and 30 lb extinguishers often require wider contact points, reinforced steel thickness, stronger mounting holes, or support-base structures to reduce stress on the cylinder neck and wall fasteners.

Poseidon can adjust bracket dimensions around customer-supplied extinguisher data, including cylinder diameter, overall height, shoulder shape, valve position, handle profile, and mounting clearance. For best fit, buyers should provide extinguisher capacity, cylinder diameter, brand/model reference, and mounting environment before production. This is important for distributors carrying multiple extinguisher brands, because two extinguishers with the same nominal capacity may still have different cylinder diameters or handle geometries.

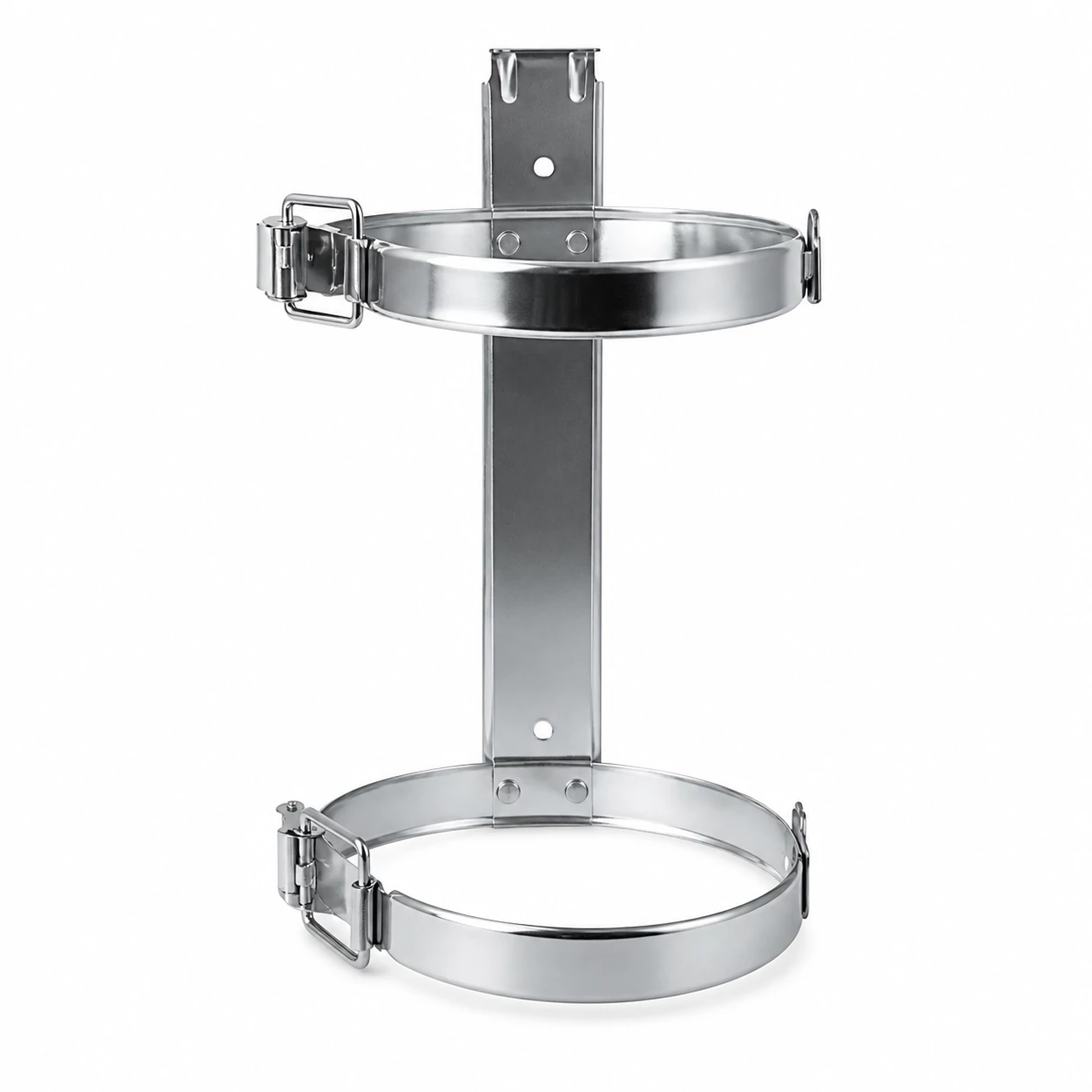

Material and finish selection should follow the installation environment. Powder-coated steel suits many indoor commercial and industrial applications. Stainless steel or protective coating options can support outdoor, humid, marine, or corrosive environments. Aluminum alloy may be selected where weight reduction matters, while engineered plastic can be used for lightweight brackets and cost-sensitive applications.

Salt-spray or coating performance requirements can be reviewed for custom projects when buyers provide target test conditions. This allows the bracket material, finish, and packaging method to be aligned with outdoor, marine, or industrial exposure requirements without overstating certification claims.

For OEM and wholesale customers, Poseidon can build a full bracket line covering fire extinguisher wall brackets, vehicle fire extinguisher mounts, marine brackets, heavy-duty fire extinguisher holders, and custom mounting hardware. Options include bracket shape, strap type, mounting hole layout, steel thickness, finish, color, logo marking, barcode label, carton design, and mixed-model packaging for distributor inventory programs.
