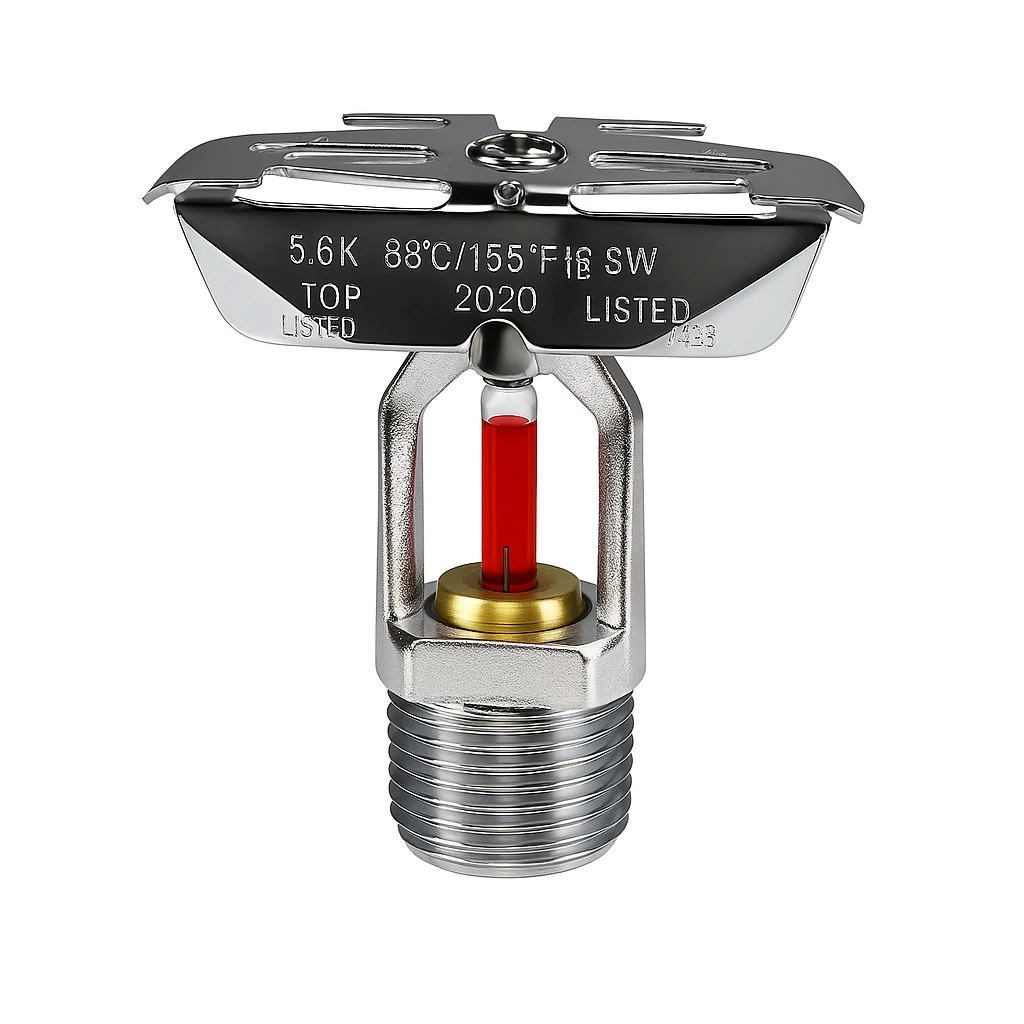

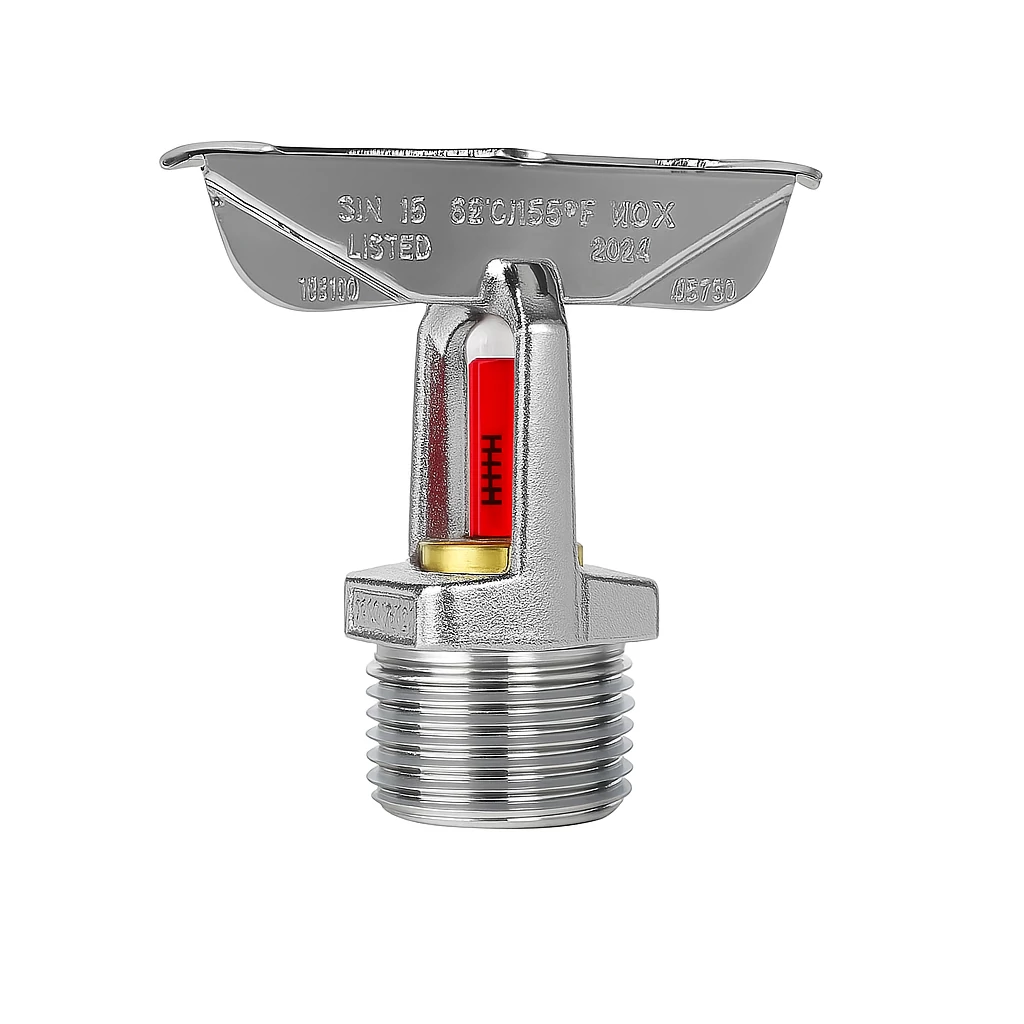

Sidewall Fire Sprinkler Heads
The sidewall fire sprinkler head is a high-performance fire protection solution, specifically engineered for efficient water distribution in confined spaces. Its horizontal sidewall spray pattern delivers targeted coverage, making it ideal for narrow areas such as hallways, corridors, and storage spaces.
Certified to UL 199 and compliant with NFPA 13, these sidewall fire sprinkler heads feature a K-Factor of 5.6 (U.S.)/80 (metric) and operate at a maximum working pressure of 175 PSI (12 BAR). Designed to meet the fire protection standards of the United States, sidewall fire sprinkler head combine durability, reliability, and aesthetic flexibility, making this fire sprinkler head a top choice for diverse environments.
Detail
The sidewall fire sprinkler head is uniquely designed to address the challenges of spaces where traditional ceiling-mounted sprinklers are impractical. Its horizontal sidewall configuration ensures uniform water distribution while minimizing water wastage. This innovative approach makes these sidewall fire sprinkler heads highly effective for corridors, offices, and warehouses.
Key advantages of this fire sprinkler sidewall model include:
- K-Factor of 5.6 (U.S.)/80 (metric) for optimized water flow and coverage.
- Wide Pressure Range: Operates efficiently between 7 PSI (0.5 BAR) and 175 PSI (12 BAR).
- Tested Durability: Withstands pressures up to 500 PSI (35 BAR) for enhanced reliability in demanding conditions.
- Compact Design: Features a nominal size of 1/2″ NPT or BSPT, ideal for tight or confined installations.

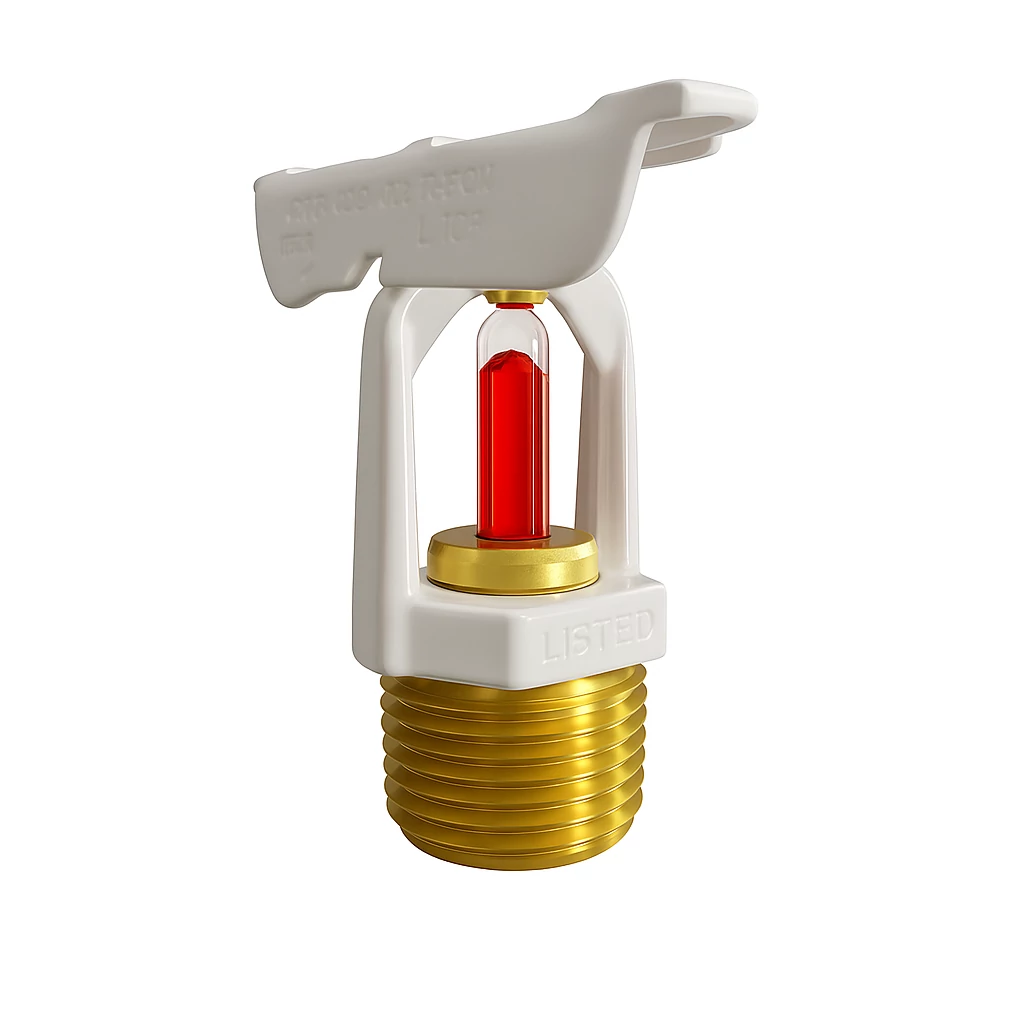

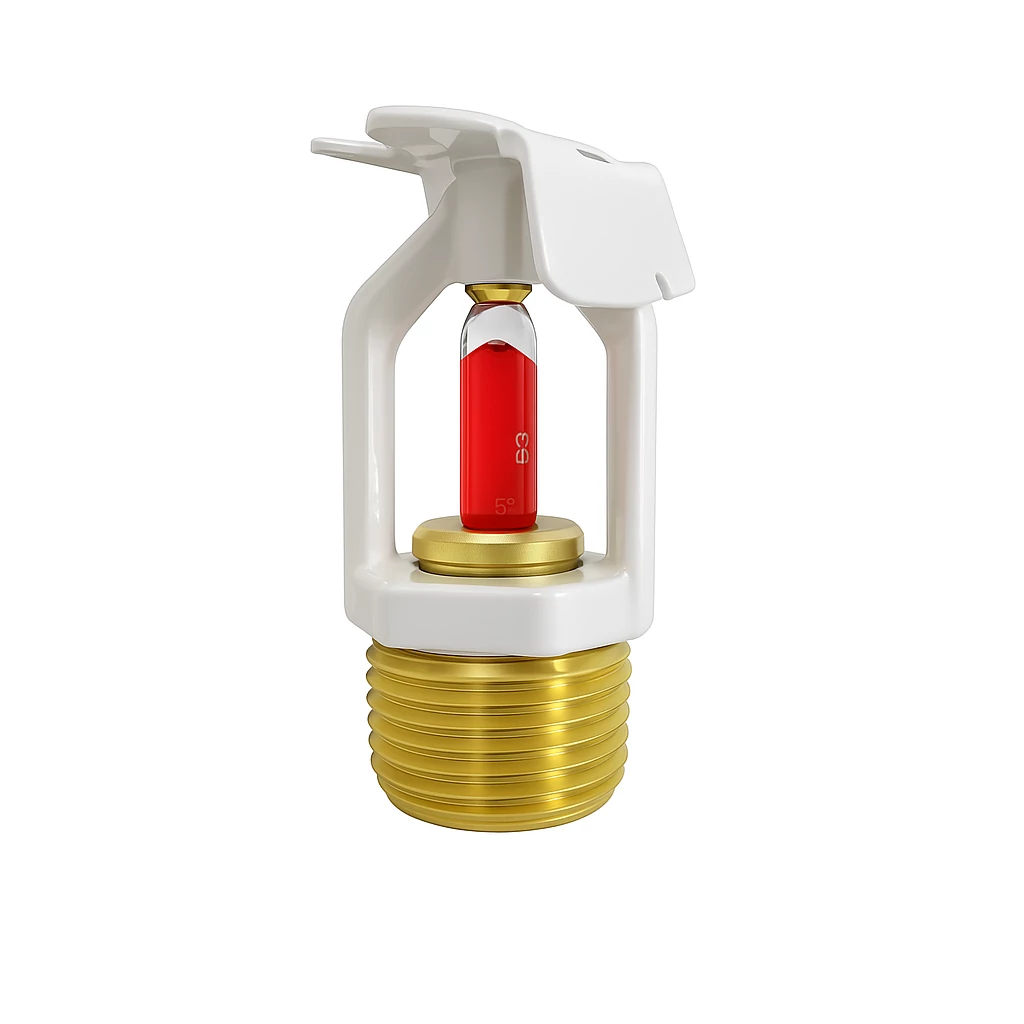

- Customizable Finishes: Options include natural brass, chrome-plated, and white-coated finishes, enhancing the user experience in different architectural settings.
These sidewall sprinklers are particularly cost-effective, as their targeted coverage reduces the number of sprinklers required compared to conventional overhead designs, optimizing installation and maintenance costs.
Unique Advantages
- Cost-Effective Installation: Reduces the number of sprinklers required, optimizing overall system costs.
- Precision Coverage: The horizontal spray pattern ensures efficient water distribution in challenging layouts.
- Enhanced Durability: Certified to withstand pressures up to 500 PSI, providing long-term reliability.
- Design Flexibility: Multiple finishes and configurations to suit various architectural and functional needs.
The sidewall fire sprinkler head combines innovative design, robust performance, and certified reliability to meet modern fire safety needs. Designed for both residential and commercial applications, these sidewall fire sprinklers offer precision coverage, cost-effective installation, and long-term durability. Whether for narrow corridors, warehouses, or public venues, they provide unmatched fire protection and peace of mind.
- Horizontal Sidewall Spray Pattern: Provides targeted fire suppression along walls, ensuring effective protection in confined spaces.
- Durable and Certified: Fully compliant with UL 199 and NFPA 13, tested to withstand 500 PSI (35 BAR).
- Optimized Water Flow: Features a K-Factor of 5.6 (U.S.)/80 (metric) for consistent fire suppression performance.
- Wide Operating Range: Functions efficiently between 7 PSI (0.5 BAR) and 175 PSI (12 BAR), suitable for diverse applications.
- Customizable Aesthetics: Available in natural brass, chrome-plated, or white-coated finishes to meet design requirements.
- Seamless Integration: Compatible with 1/2″ NPT or BSPT threads, ensuring compatibility with existing fire sprinklers systems.
The sidewall fire sprinkler heads are versatile solutions for various fire protection needs:
Corridors and Hallways
The horizontal sidewall spray pattern ensures complete coverage along walls, making these sidewall fire sprinklers the ideal choice for narrow spaces. Their precise design reduces the number of units needed, lowering installation and operational costs.
Industrial Warehouses
In storage facilities and warehouses where shelving or equipment obstructs ceiling-mounted sprinklers, the sidewall fire sprinkler head provides targeted fire suppression for otherwise challenging areas. Its durability under 500 PSI (35 BAR) testing ensures reliable performance.
Residential and Commercial Spaces
The fire sprinkler sidewall heads blend seamlessly into residential and commercial settings. With finishes like chrome-plated and white-coated, they enhance the user experience without compromising safety.
Public Venues
In theaters, schools, and museums, the sidewall sprinklers minimize water damage by directing flow horizontally, protecting walls, assets, and sensitive equipment while ensuring compliance with United States safety standards.
| Parameter | Specification |
| Type | Sidewall Fire Sprinklers |
| Spray Pattern | Horizontal |
| K-Factor | 5.6 (U.S.)/80 (metric) |
| Nominal Size | 1/2″ NPT or BSPT |
| Maximum Working Pressure | 175 PSI (12 BAR) |
| Test Working Pressure | 500 PSI (35 BAR) |
| Minimum Operating Pressure | 7 PSI (0.5 BAR) |
| Finish Options | Natural Brass, Chrome Plated, White Coated |
- UL 199: Validates reliable performance in automatic sprinkler systems.
- NFPA 13: Ensures compliance with fire sprinkler installation standards in the United States.
- ISO 9227: Certified for corrosion resistance, extending product life.
- RoHS Compliance: Guarantees environmentally friendly materials, improving the user experience.
