Water Fire Extinguisher
Poseidon’s Water Fire Extinguisher series is suitable for extinguishing Class A fires (garbage, wood, and paper). Designed and manufactured according to UL/ULC 2A standards, it has a capacity of 2.5 gallons (9.5 L), and the stream of water maintains a continuous discharge time of 45–65 seconds at a spray distance of 12–18 m (40–60 ft), ensuring complete extinguishment without reignition for both wood cribs (112 pieces) and panels (10 ft × 10 ft).
The 2.5-gallon water fire extinguisher features a deep-drawn steel/aluminum cylinder with a thick-walled polished stainless steel cylinder and an all-metal valve structure, ensuring stable pressure resistance without leakage at a normal working pressure of 100–195 psi (0.7–1.35 MPa). It can withstand up to three times the working pressure without ductile failure or fragmentation.
Poseidon offers customization, design, and OEM services for Water Fire Extinguishers based on UL/ULC 2A standards, and provides certification testing support for UL/NFPA standards.
Poseidon water extinguishers are designed for operating temperatures of +40°F to +120°F (≈4–49°C), utilizing a 12–18 m (40–60 ft) stream of water to extinguish Class A fires caused by wood, paper, fabric, trash, and plastics (non-metallic solids) through cooling, soaking, and penetration.

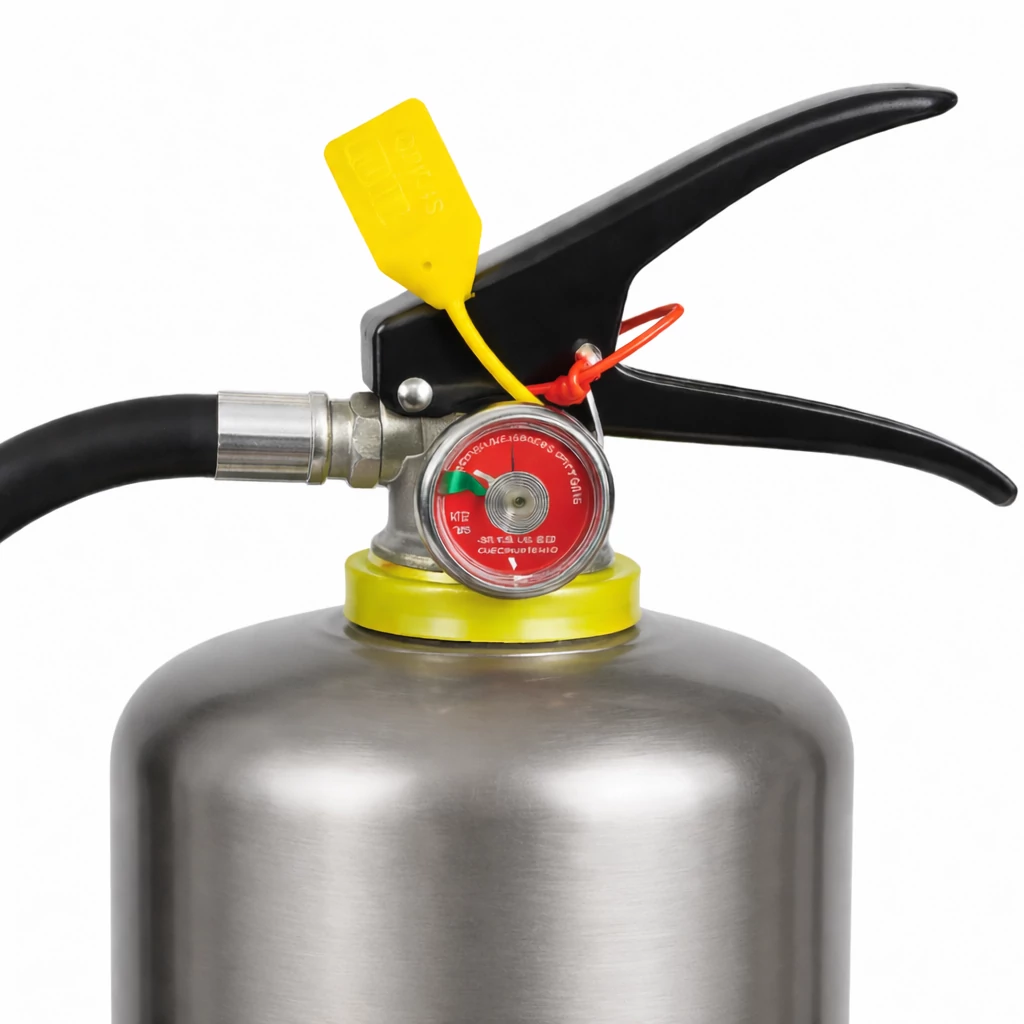

The water fire extinguisher features a robust and durable impact-resistant metal valve, handle, and lever, and has undergone multiple drop tests from 0.9–1.0 m (≈36 in) to ensure functionality in critical situations. The water fire extinguisher utilizes a deep-drawn steel/aluminum cylinder with a thick-walled structure, designed and tested for 48–96 hours of corrosion (salt spray) resistance, ensuring long-term storage in harsh environments without affecting structure or operation.
Poseidon has conducted the following tests on standard water-based fire extinguishers (2.5 gallons) in its internal laboratory:
- Fire Test (Wood Crib): 112 pieces of 38 mm × 38 mm (2 in × 2 in) wood pieces, 635 mm (25 in) long, stacked in 16 layers with 7 pieces per layer, extinguished with a single extinguisher without re-ignition.
- Fire Test (Wood Panel): 10 ft × 10 ft wood panel, extinguished with a single extinguisher without re-ignition.
- Pressure Resistance: Operating pressure of 100–195 psi (0.7–1.35 MPa) with no leakage; pressure test ≥ 2 × operating pressure with no permanent deformation; ≥ 3 × operating pressure with ductile failure, no fragmentation.
- Drop Test: 10 drops from a height of 0.9–1.0 m (≈36 in), still functional after drops.
- Corrosion Test: 48–96 hours in a salt spray environment without affecting structure or operation.
- Discharge Time: 55 seconds uninterrupted.
- Discharge Distance: 18m (60 ft), covering panel + crib.
The water fire extinguisher series comes with a 5-year manufacturer’s warranty, and after-sales maintenance and OEM services are available depending on the region.
Class A Fire Performance (2-A Test Basis):Designed to extinguish UL 711–defined 2-A Class A fire load (wood crib + wood panel), equivalent to 112 wood members, using a single extinguisher and continuous discharge.
Extinguishing Capacity: Approx. 2.5 gal (9.5 L) water, suitable for ordinary combustible fires (wood, paper, cardboard, textiles).
Discharge Performance: Continuous discharge time ≥50 s; effective stream reach 40–60 ft (12–18 m).
Pressure Design: Service pressure 100–195 psi; pressure integrity designed for ≥2× proof pressure and ≥3× burst pressure.
Mechanical Durability: Structural design suitable for ~36 in (0.9–1.0 m) drop impact without loss of function.
Environmental Operating Range: +40°F to +120°F (4°C to 49°C); optional antifreeze configuration available for low-temperature use.

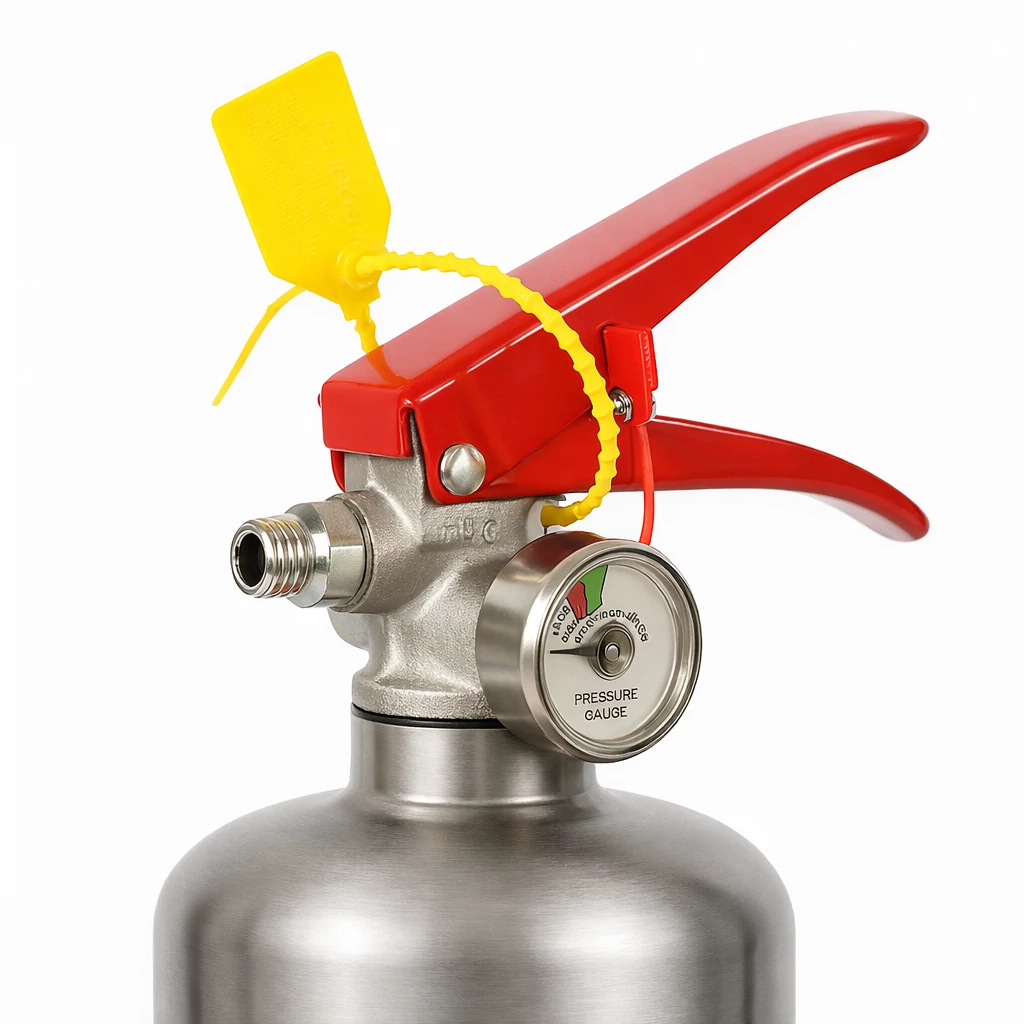

Construction: Metal cylinder with corrosion-resistant finish; pressure gauge for visual status check.
Mounting Configuration: Compatible with wall and vehicle brackets; OEM / private-label configurations available.
Transport Configuration: Supplied empty for safe handling and transport.
Warehouses and industrial facilities
Suitable for storage and handling areas with a high concentration of ordinary combustibles such as cartons, pallets, paper goods, and packaging materials.Manufacturing plants and workshops
Appropriate for Class A fire risks around production lines, assembly areas, and material staging zones.Schools, offices, and commercial buildings
Water-based suppression with no chemical residue, making it suitable for occupied environments and property-focused protection.Public buildings and retail spaces
Designed for areas where fires typically involve trash, furnishings, displays, and other common combustible materials.Fleet and vehicle applications
Can be installed using approved vehicle or wall mounting brackets to maintain readiness during transport and mobile operations.
Technical Parameters
| Parameter | Specification | Unit / Design Reference |
|---|---|---|
| Extinguishing Agent | Clean water | Class A water-based design |
| Fire Performance Basis | Designed for 2-A Class A fire conditions (wood crib and panel) | UL 711 test methodology (design reference) |
| Applicable Fire Class | Class A only | Ordinary combustibles |
| Cylinder Material | Stainless steel (SS304) or epoxy-coated carbon steel | – |
| Working Pressure | 14 bar (203 psi) | Design pressure |
| Proof / Test Pressure | 27 bar (400 psi) (≈2× safety factor) | Pressure safety design |
| Operating Temperature Range | –5 °C to +60 °C (23 °F to 140 °F) | Declared operating range |
| Continuous Discharge Time | ≥ 50 seconds | Performance design target |
| Effective Discharge Distance | 45–55 ft (13.7–16.8 m) | Performance design target |
| Cylinder Diameter × Height | 7 in × 24.5 in (178 mm × 622 mm) | 2.5 gal reference model |
| Capacity Options | 1.3 / 2.4 / 3.2 gal (5 / 9 / 12 L) | Configurable |
| Mounting Options | Wall hook or vehicle bracket | Common installation practice |
| Warranty | 5-year limited warranty | Manufacturer policy |
Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Model | PSB125 | 25 L configuration |
| Extinguishing Agent | Clean water | Water-based, no additives |
| Intended Fire Application | Class A ordinary combustibles only | Wood, paper, packaging, textiles |
| Fire Performance Basis | Designed for 2-A to 3-A Class A fire conditions | Based on UL 711 fire test methodology (design reference) |
| Cylinder Material | Carbon steel or stainless steel SS304 | Optional material selection |
| Cylinder Outer Diameter | 250 mm (9.84 in) | – |
| Cylinder Length | 625 mm (24.61 in) | – |
| Cylinder Volume | 30 L (7.93 gal) | Total internal volume |
| Nominal Capacity | 25 L (6.6 gal) | Usable water charge |
| Full Weight | 44.5 kg (98.03 lbs) | Filled weight |
| Working Pressure | 14 bar (203 psi) | Design working pressure |
| Test Pressure | 27 bar (400 psi) | Approx. 2× safety factor |
| Operating Temperature Range | –5 °C to +60 °C (23 °F to 140 °F) | Declared operating range |
| Discharge Mode | Continuous manual discharge | Single-handle operation |
| Mounting | Floor standing or bracket-mounted | Site dependent |
| Packing Size | 470 × 430 × 960 mm (18.5 × 16.9 × 37.8 in) | Single unit |
| Packing Quantity | 1 pc / carton | – |
| Container Loading (20 ft) | 150 pcs | Reference logistics data |
