Concealed Fire Sprinkler Heads
The concealed fire sprinkler head is a discreet, high-performance fire protection solution designed for residential, commercial, and industrial applications. Certified under UL 199 and compliant with NFPA 13, it delivers reliable fire suppression while seamlessly integrating into ceilings and walls for a clean, aesthetic finish.
Engineered with robust materials like brass, zinc alloy, and stainless steel, concealed fire sprinkler heads offer exceptional corrosion resistance and durability, even in harsh environments. Designed to be flush with the ceiling, they use concealed fire sprinkler head covers to blend into interiors while maintaining rapid activation. The compact, customizable design and technical adaptability make these concealed fire sprinklers a trusted choice for diverse fire safety needs.
Detail
The concealed fire sprinkler head addresses the specific needs of spaces requiring both safety and aesthetic integrity. Designed with a concealed cap and flat plate, the residential concealed sprinkler activates when the surrounding temperature exceeds a preset threshold, releasing water through a precisely engineered nozzle. The sprinkler systems ensure that the head is installed flush with the ceiling or wall to provide a smooth, clean finish.

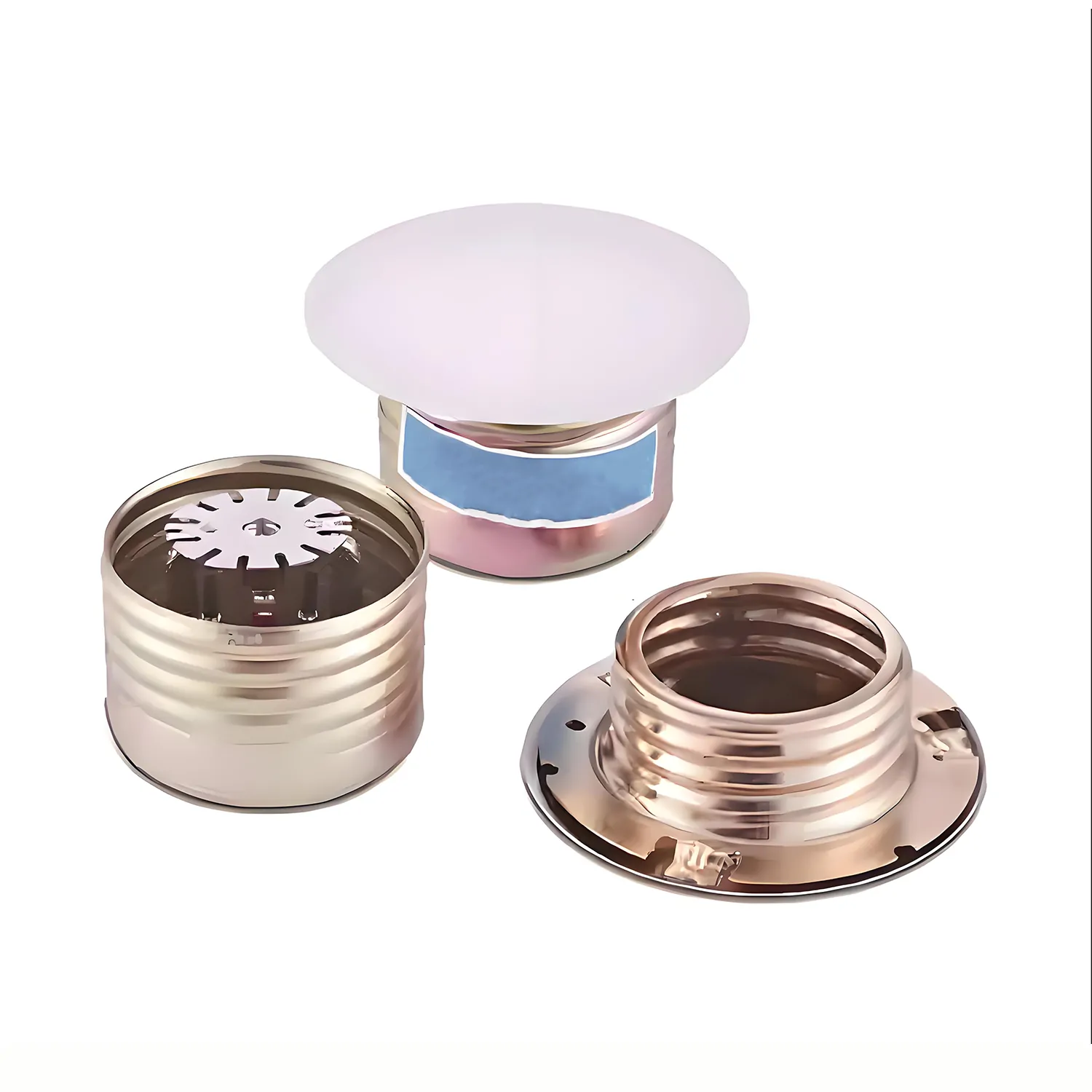

The sprinkler’s profile covers and cover plate are available in standard decorative finishes or custom decorative finishes to meet design requirements, making them ideal for modern interiors. Each concealed fire sprinkler head supports heat-sensitive glass bulbs in 3mm and 5mm diameters, ensuring rapid activation within ≤3 seconds.
Constructed from materials like brass for durability, zinc alloy for corrosion resistance, and stainless steel for chemically harsh environments, the unit withstands pressures up to 175 psi (12 bar). With customizable options for materials, dimensions, and connection threads (R1/2 or R3/4), these concealed pendent sprinklers are adaptable to a wide range of applications.
In a modern office complex, concealed fire sprinkler heads were installed to provide safety without disrupting the interior design. With cover plates in standard decorative finishes, the sprinklers maintained the sleek aesthetic of the office. During a fire drill, the system demonstrated activation within 2.8 seconds, ensuring water discharge that protected the residential concealed areas while blending with the flush ceiling design.
The concealed fire sprinkler head offers a seamless blend of safety, functionality, and design flexibility. Whether used in residential or commercial spaces, its advanced technology and customizable features provide effective fire protection while maintaining architectural aesthetics. Certified to UL 199 and NFPA 13, this solution ensures maximum safety and peace of mind.
- High-Strength Materials: Constructed from brass, zinc alloy, or stainless steel, concealed fire sprinkler heads offer long-term durability and corrosion resistance.
- Precise Activation: Heat-sensitive glass bulbs, color-coded by temperature, provide rapid response within ≤3 seconds.
- Discreet Aesthetic: Installed flush with the ceiling, the sprinkler head uses sprinkler cover plates in standard decorative finishes or custom options to blend seamlessly with interiors.
- Customizable Design: Tailored options for material, size, and cover plate finishes ensure compatibility with unique project requirements.
- Certified Safety: Fully compliant with UL 199, NFPA 13, and other international safety standards.
- Enhanced Performance: Operates at pressures up to 175 psi (12 bar), suitable for demanding sprinkler systems.
The concealed fire sprinkler head is designed to meet the diverse fire safety needs of residential, commercial, and industrial spaces. Its discreet design, robust performance, and flexibility make it ideal for various applications.
Residential Spaces
In modern homes, maintaining aesthetic appeal is crucial while ensuring safety. Residential sprinklers like the concealed fire sprinkler head integrate seamlessly into ceilings with flat plate covers, providing effective fire suppression. The unit’s customizable decorative finishes help meet design requirements while offering protection for high-moisture areas like bathrooms and kitchens.
Commercial Buildings
Offices and retail stores demand reliable sprinkler systems that align with interior design. Installed flush with the ceiling or wall, the concealed fire sprinkler heads maintain a professional appearance while delivering rapid activation. Their compatibility with horizontal sidewall installations further enhances their versatility.
Industrial Facilities
In warehouses and manufacturing plants, durable materials like stainless steel make the concealed fire sprinkler resistant to corrosion and chemical exposure. Their high-pressure operation ensures robust protection for critical inventory and equipment.
Public Spaces
Theatres, museums, and event venues require fire safety solutions that blend with architectural aesthetics. The concealed fire sprinkler head covers and decorative finishes to meet design requirements make these sprinklers ideal for preserving the visual integrity of such spaces while providing reliable fire suppression.
| Parameter | Specification |
| Nominal Diameter | 15DN or 20DN (0.6 or 0.8 inches) |
| Installation Type | Pendant-Style |
| Glass Bulb Diameter | 3mm or 5mm |
| Activation Temperature Ratings | 57°C, 68°C, 79°C, 93°C, 141°C, 182°C |
| (135°F, 155°F, 174°F, 199°F, 286°F, 360°F) | |
| Glass Bulb Colors | Red, Yellow, Orange, Green, Blue, Purple |
| Materials | Brass, Zinc Alloy, Stainless Steel |
| Connection Thread | R1/2 or R3/4 |
| Operating Pressure | Up to 175 psi (12 bar) |
| Certifications | UL 199, NFPA 13 |
| Function | Fire Safety Emergency |
| Customization Options | Materials, Dimensions, Thread Types, profile covers |
- UL 199: Standard for automatic sprinkler systems.
- NFPA 13: Installation standards for fire sprinkler systems.
- ISO 9227: Salt spray testing certification for corrosion resistance.
- RoHS Compliance: Ensures environmentally friendly materials.
