Welding Blanket
Poseidon supplies fire-retardant welding blankets for equipment and work-area shielding during welding, cutting, grinding, and other hot work. Compare the light-duty fiberglass, vermiculite-coated, and high-silica options by spark or slag exposure, installation, fabric weight, thickness, and dimensions.
Material options include E-glass fiberglass and 96% silica fabrics, with silicone, vermiculite, acrylic, or graphite coatings. Select the required construction and documentation for the finished hot-work blanket, pad, or curtain duty. Material flame tests and peak-temperature values do not establish personal protective performance or suitability for every molten-metal exposure. Compare blanket types in the fire blanket range.
Coating Options：
- Silicone
- Vermiculite
- Acrylic
- Graphite
Base Fabric：

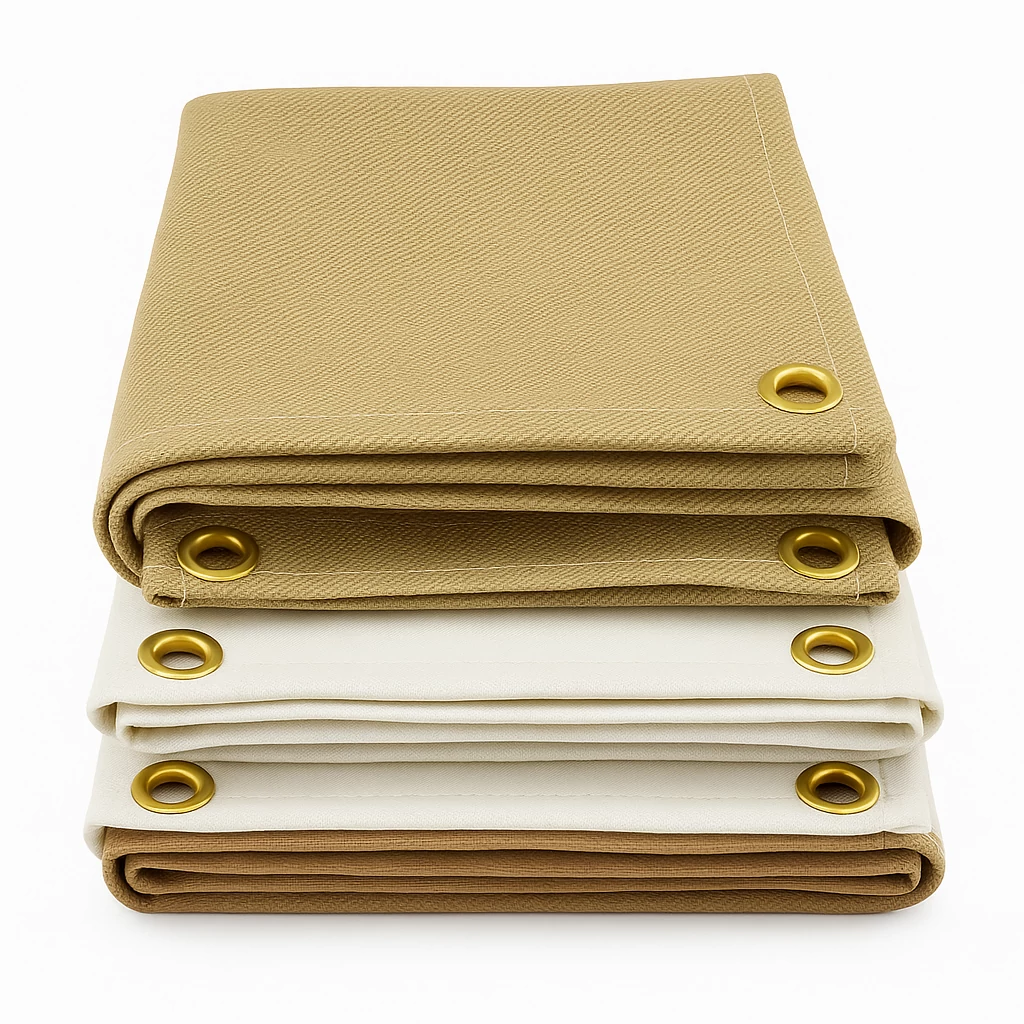

- Glass Fiber Fabric
- High Silica Fabric
Size：
- 4x6ft
- 6x6ft
- 6x8ft
- 8x8ft
- 10x10ft
- Customized
Each Poseidon welding blanket is engineered for consistent performance in high-temperature environments. The welding blanket material selection includes fiberglass and high-silica fabrics offering continuous resistance from 550 °C (1022 °F) up to 1000 °C (1832 °F), with short-term peaks reaching 1900 °C (3452 °F) for molten metal splash exposure.
Available flame retardant coatings provide specialized benefits:
Silicone coating – flexible, oil-resistant, and easy to clean.
Vermiculite coating – superior slag and spark resistance for heavy-duty welding.
Graphite coating – oxidation and chemical splash protection.
Acrylic coating – economical FR finish for light-duty work areas.

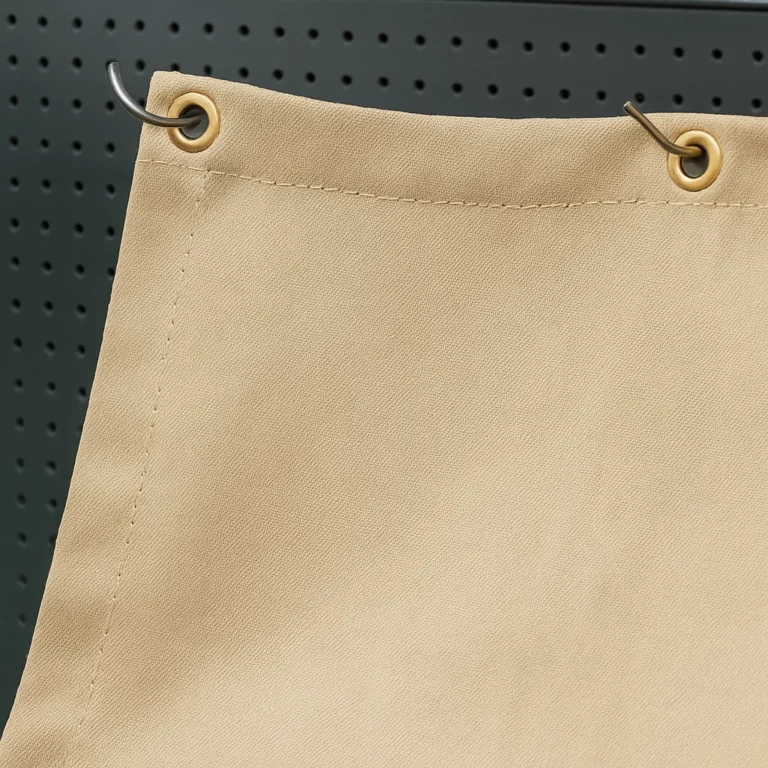

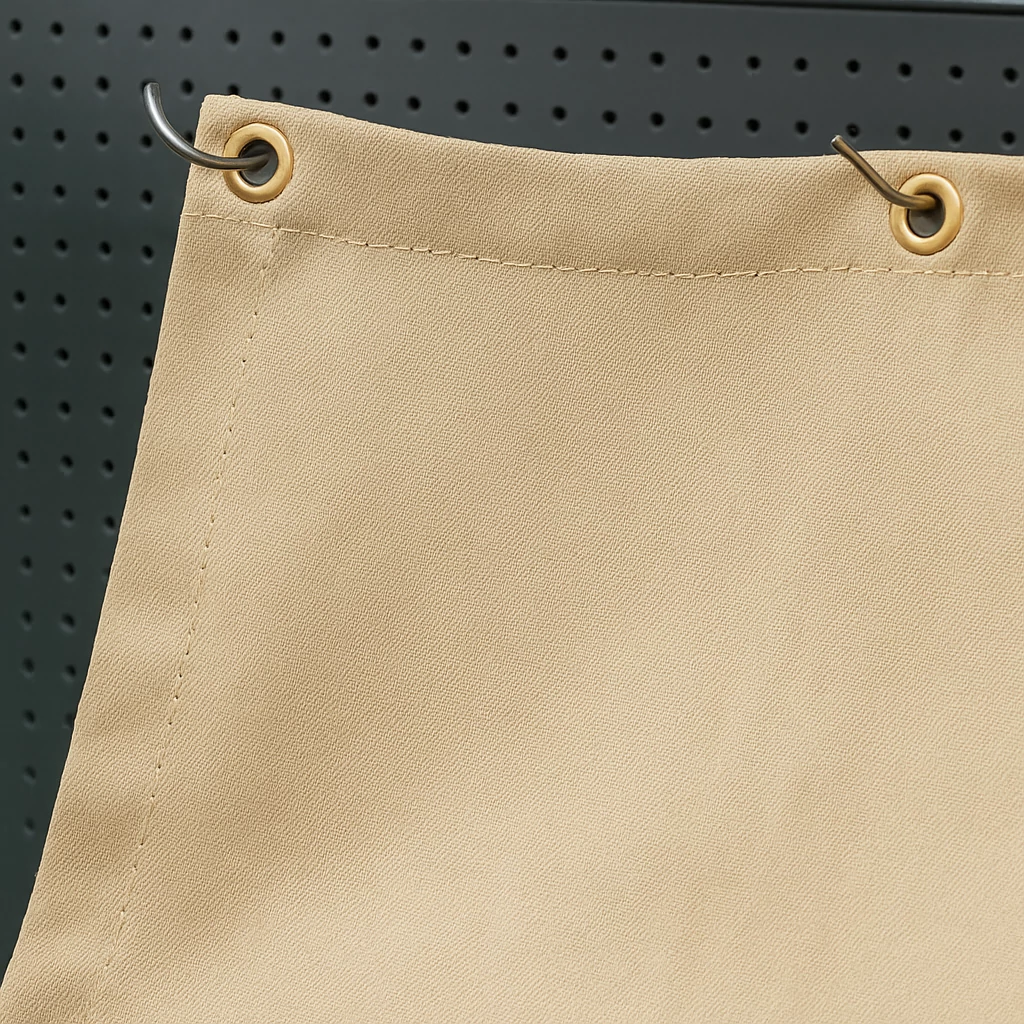

Each fireproof welding blanket is reinforced with para-aramid stitching and fitted with nickel-plated or stainless-steel grommets (15 mm Ø every 24–36 in / 610–914 mm) for secure installation. Available as pre-cut sheets or rolls, they integrate seamlessly with other flame retardant fire blankets, curtains, or welding enclosures.
Material flame testing: UL 94 (V0/V1) and NFPA 701 Methods 1 & 2 for the specified material specimens; these tests do not establish approval of every finished hot-work configuration.
Continuous heat tolerance: 550 °C – 1000 °C (1022 °F – 1832 °F); short-term exposure to 1900 °C (3452 °F).
High mechanical durability: abrasion-resistant welding blanket materials with long service life.
Chemical and UV-resistant surface coatings for industrial and outdoor use.
Quick setup with reinforced edges and standardized grommet spacing.
OEM / Private Label Options – customized color, logo, and packaging for distributors or OEM partners.

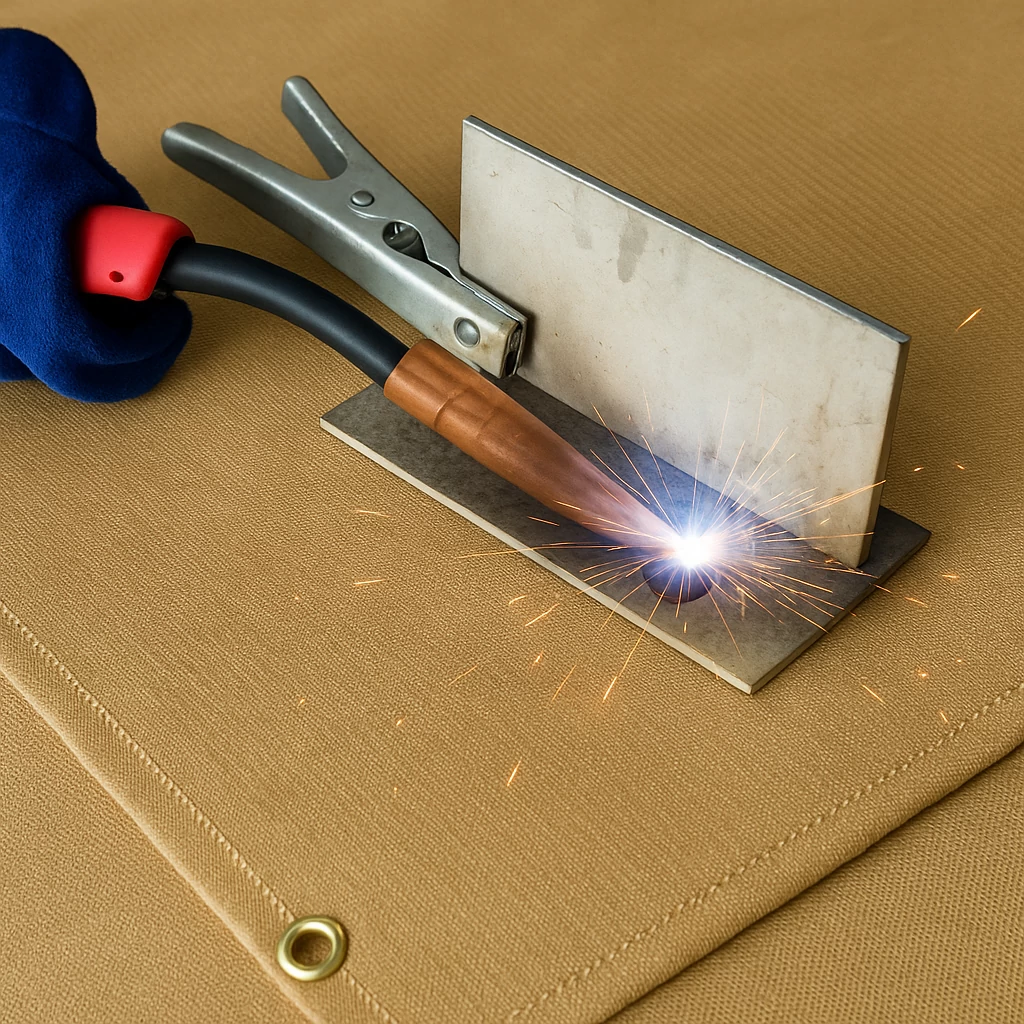

Welding and Cutting Zones – Primary use as a welding blanket or welding mat to protect nearby structures, machinery, and floors.
Metalworking & Foundry Operations – Heavy-duty flame retardant blankets for slag, sparks, and molten metal containment.
Construction & Shipbuilding – Portable fire blankets for confined-space or elevated welding operations.
Industrial Maintenance – Shields equipment during grinding, cutting, or hot-work repair.
Automotive & Chemical Plants – Suitable for heat-isolating work areas with flame retardant coatings to prevent surface ignition.
| Parameter | Light-Duty Fiberglass (Type A) | Medium-Duty Vermiculite-Coated (Type B) | High-Silica / Graphite-Treated (Type C) | Test Standard / Method |
| Welding Blanket Material | E-glass fiberglass | E-glass fiberglass | 96 % silica fabric | ASTM D3776 (Weight), ASTM D1777 (Thickness) |
| Coating Type | Silicone / Acrylic | Vermiculite (1 or 2 sides) | Graphite / Vermiculite | ASTM D6413 (Flame Retardancy) |
| Continuous Temp. Resistance | ≤ 550 °C (1022 °F) | ≤ 800 °C (1472 °F) | ≤ 1000 °C (1832 °F) | Declared material temperature; configuration documentation |
| Short-Term Peak Temp. | 800 °C (1472 °F) | 1100 °C (2012 °F) | 1900 °C (3452 °F) | Internal Verification |
| Thickness Range | 0.8–1.5 mm (0.03–0.06 in) | 1.5–3.0 mm (0.06–0.12 in) | 2.0–5.0 mm (0.08–0.20 in) | ASTM D1777 |
| Area Weight | 200–600 g/m² (5.9–17.7 oz/yd²) | 600–1500 g/m² (17.7–44.2 oz/yd²) | 1500–3000 g/m² (44.2–88.5 oz/yd²) | ASTM D3776 |
| Tensile Strength (Warp / Weft) | ≥ 500 / 400 N | ≥ 800 / 700 N | ≥ 1200 / 1000 N | ASTM D5034 |
| Edge Reinforcement | Para-aramid thread | Same | Same | – |
| Grommet Spacing | 610–914 mm (24–36 in) | 610–914 mm (24–36 in) | 610–914 mm (24–36 in) | Internal Spec |
| Width Options | 1.0–2.0 m (3.3–6.6 ft) | 1.0–2.0 m (3.3–6.6 ft) | 1.0–2.0 m (3.3–6.6 ft) | – |
| Standard Sizes | 1.2×1.8 m, 1.5×2.0 m | 1.8×2.0 m, 2.0×2.0 m | 2.0×3.0 m, custom sizes available | – |
| Material Flame-Test References | NFPA 701, UL 94 (tested, not certified) | Same | Same | NFPA 701 (2019), UL 94 (V0/V1) |
| Packaging | Folded blanket / roll (50 m × 1 m) | Same | Same | – |
| Recommended Use | Light spark and maintenance work | MIG / TIG heavy welding | Foundry / plasma cutting zones | – |
Material specimens are tested using UL 94 (V0/V1) and NFPA 701 Methods 1 & 2, according to the specified fabric and coating. These material tests address flame behavior; they do not establish certification of every finished hot-work blanket, pad, or curtain. Where FM 4950 approval is required, specify the finished-product duty and approval documentation for the ordered configuration.
The products are intended for facility and equipment shielding, rather than personal protection. Select by the actual exposure and installation; continuous and short-term peak temperatures are different conditions.
For bulk or OEM supply, provide the welding/cutting process, spark or slag exposure, vertical or horizontal installation, protected area and dimensions, material/coating, thickness and fabric weight, edge/grommet requirements, quantity, required standard/documentation, branding, and folded-kit or roll packaging.
